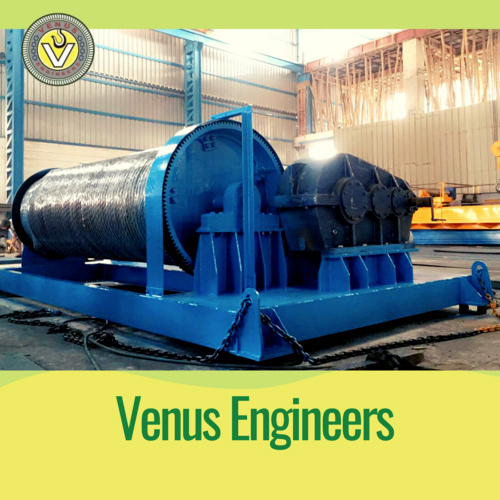

Electric Wire Rope Winch Machine

250000.00 - 1200000.00 INR/Unit

Get a Price/Quote

Product Details:

Power Source Electric
Capacity 5 Ton
Speed 3 m/min
Drum Capacity 50 m
Supporting Load 5 Ton
Wire Rope Diameter 12 mm
Working Load 5 Ton
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Electric Wire Rope Winch Machine Price And Quantity

Minimum Order Quantity 1 Unit
Price Range 250000.00 - 1200000.00 INR/Unit

Electric Wire Rope Winch Machine Product Specifications

Drum Capacity 50 m
Power Source Electric
Speed 3 m/min
Capacity 5 Ton
Wire Rope Diameter 12 mm
Supporting Load 5 Ton
Working Load 5 Ton

Electric Wire Rope Winch Machine Trade Information

Supply Ability 12 Unit Per Year
Delivery Time 6 Week
Main Domestic Market All India
Certifications ISO 9001:2018

Product Description

Our clients can avail from us supreme grade Electric Wire Rope Winch Machine as per their requirements. These power winch machines are designed as per the IS-9507-1979 standards and the latest market trends. We manufacture these machines by making use of premium grade steel and components, obtained from the trustworthy vendors of the industry. The offered Electric Wire Rope Winch Machine is highly demanded by construction industries and factories for lifting and pulling heavy objects.

Electric Wire Rope Winch Details:

Rope Winding Capacity up to 1 km.
Multipurpose Lifting Cum Pulling.
Speed Vary From: 1 Mtr./Min. to 15 Mtr./Min.

Salient Features:

Design: Power Driven Winch Machines are designed as per IS-9507-1979 and are suitable for heavy Duty applications. Generally, Winches with Right Hand Operation are manufactured, however, the same can supplied with other side operation also as per requirement.
Base Frame: Fabricated with I.S.M.C. & C Sections/Plates property ribbed, floored with checkered plated platform for working area, lifting lugs, Anchoring Holes for foundation, provided.
Reducer: 1st stage reduction with self made Helical Reduction gear box or of reputed make & other reduction with open Spur Gears & pinions.
Rope Drum: Steel fabricated Drum duly machined, with flanges at both ends.
Winding Capacity: 100 Mtr. of Wire Rope. Drums with larger winding capacity can also available.
Motor: High Starting Torque, Class B Insulation, 150 Starts/Hr415V, 50Hz, 3 Phase, A.C. Induction, squirrel Cage/Slipring motors conforming to IS-325 of reputed make like NGEF/CROMPTON/BBL/BST etc.
Control & Control Panel: The winch is operated by Push Button Station/Controller at 110V. fixed on machine. The control Equipments like Tripple Pole Reversing Contractors, H.R.C. Fuses, pilot lamp etc of reputed make like ABB/BCH/SIEMENS.
Brake: Electromagnetic/Elector thruster, Double Shoe Type Brake and/or Hand Operated brake provided as per requirement.
Frame: I.S.M.C.
Test: All Machines are tasted at 25% overload.
Warranty: 12 Months warrantee from the date of delivery against any manufacturing defect at Factory basis.
Improvement: We reserve the right of effecting any Technical improvement without any notice.

Product Details:

Material	Mild Steel
Power Source	Electric
Type	Electric Winches
Rope Length	5-10 m
IP Rating	IP33
Phase	Three
Usage	Industrial

Versatile Heavy Lifting Solution

This electric wire rope winch is designed to handle tough lifting jobs in factories, warehouses, and construction sites. Its 5-ton load capacity and 50-meter drum allow for ample flexibility, making it ideal for moving heavy goods over significant distances with ease.

Reliable Performance and Safety

Built for longevity and safe operation, the winch employs a sturdy 12 mm wire rope and features a steady speed of 3 meters per minute. These specifications ensure consistent performance, precise control, and enhanced protection for operators and materials alike.

FAQs of Electric Wire Rope Winch Machine:

Q: How is the electric wire rope winch machine installed and operated?

A: The winch machine should be installed on a solid and level foundation, with power supplied through a suitable electric connection. Operation involves securing the load to the 12 mm wire rope, selecting the desired direction, and controlling the lift or pull via the electric controls, ensuring all safety measures are followed.

Q: What applications is this 5-ton electric wire rope winch suitable for?

A: This winch is ideal for industrial lifting, pulling heavy machinery, material handling in construction, shipyards, warehouses, and infrastructure projects wherever reliable 5-ton load support is required.

Q: When is it recommended to use this specific winch instead of other lifting equipment?

A: Use this electric wire rope winch when your operations demand frequent or repetitive lifting of up to 5 tons over a distance of up to 50 meters, especially in environments where electric power is readily available and precise, safe lifting is essential.

Q: Where can I purchase or source this electric wire rope winch in India?

A: This winch is available through authorized distributors, exporters, manufacturers, and suppliers across India. Contacting a reputable supplier will help you find the best solution tailored to your project requirements.

Q: What is the process for routine maintenance of this winch?

A: Routine maintenance includes inspecting the wire rope for wear, lubricating moving parts, checking the drum and electric controls for proper function, and ensuring safety mechanisms are operational. Regular servicing extends the equipment life and maintains safety standards.

Q: How can users benefit from choosing this winch machine for their operations?

A: Users gain improved efficiency, reliable lifting power, and enhanced safety, thanks to the electric winchs robust construction and consistent performance. It simplifies heavy material movement and reduces manual effort.
