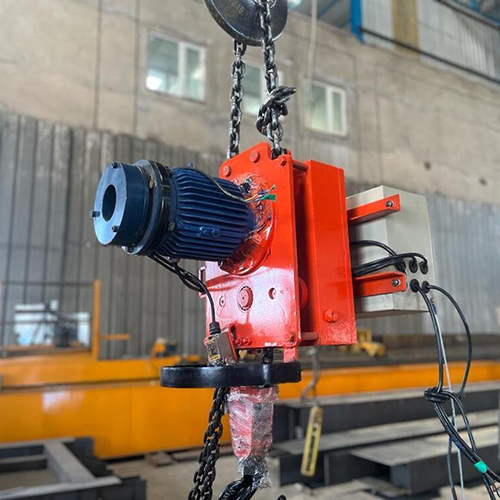

Electric Chain Hoist
- Unit of Measure
- Power Source
- Strong, Durable, Easy To Operate, Rust Proof, Consume Less Power, Other
Electric Chain Hoist
Focusing on quality, we are able to manufacture and export superior quality Electric Chain Hoist. These hoists are mostly used in construction and mining industries for lifting and moving heavy items. Our team of qualified professionals manufacture these hoists by making use of quality materials and component, brought from the reputed vendors of the industry. We are able to offer the Electric Chain Hoist in many specifications to meet our clients' needs.
Pre-planned to move objects, the Dumbwaiter lifts are normally used in areas, which need usual accordant heavy lifting from regular chores. Storage facilities and Factories are the ones, which benefit the most from such elevators. Also found in commercial areas, banks, schools and buildings these are also operated in kitchens.
We provide best quality Electric Chain Hoists, which are best-known as "motors" in the different industries. They are utilized in the applications such as; arrays for lighting, lifting or fixing overhead truss systems and speakers. Electric chain hoists can aid in moving heavy freight from one position to the another with an easy push of button. The hoists turn up to be highly cost effective in the long haulage. The operation of the products don't requite that adept professionals as the apparatuses can be handily be managed by the amateurs because of their safety features and effortless operation. These can give supreme productivity at low costs and save the labor expenditures and precious time. Electric Chain Hoists are extremely supported and preferable in each and every premise.
The Electric Chain Hoists require many guideline features, which are expected from products conventionally. These must be made to cooperate and incorporate with the system as per the users' different choice. These can be utilized in the following: Rail Systems, Jib Crane, Overhead Bridge Cranes, or Gantry Crane. The trolleys need an effortless supplying as well as an effortless motion of load that will appoint a motion of low resistance I - beam activity.
Particular properties of Electric Chain Hoists :
- Hoists are largely accessible for single phase and three phase.
- Regulators, two speed, three phase hoist motors are accessible for all categories and types of models.
- Three phase, single speed hoist electric chain hoists and controls are accessible for LM05 and LM10 models and re - bind-able for 208, 230 or power supply of 460/3/60.
- 115 volt single phase hoists run through only a single speed.
- Three phase hoist motors are F class isolated, 50% effectual duty classed.
- Trolley brakes, Two - speed TMU trolley drive units (trolley speed is about 80/20 FPM), bumpers and drop lugs are standard.
- Driving force of variable frequency choice on TMU.
- Trolley control panel are dispensable and unwaveringly set to the motor.
Range: up to 3 Ton
Technical Specification of Electric Chain Hoist:
|Capacity In Kg. ||500 ||1000 ||2000 ||3000 |
|No. Of. Fall ||1 ||1 ||2 ||2 |
|Hoisting Speed Mt./Min. ||5 ||5 ||2.5 ||2.5 |
|H.P. of Motor ||0.75 ||1.5 ||1.5 ||1.5 |
|Closed Ht. Hook to Hook ||750 ||775 ||780 ||780 |
|Clear Width ||250 ||250 ||250 ||250 |
|Clear Lenght ||550 ||570 ||575 ||575 |
